From deck layout to interior design, each semi custom Bruckmann 42 is tailored to the individual’s specifications. Let your imagination be your guide as you choose from an array of interiors ranging from traditional Hershoff style, to the classic warmth of richly varnished wood bulkheads and joinery. Match your choice of woods to whatever style of cabinetry catches your eye.

The Bruckmann 42 can be configured for both family and couples cruising, as the interior layout can be designed to accommodate your every need. You may wish to incorporate an additional cabin aft, a gourmet galley located midship, or just about anything else you can dream of. This flexible building approach affords the client the freedom of a custom yacht with the value of a quality series – production boat.

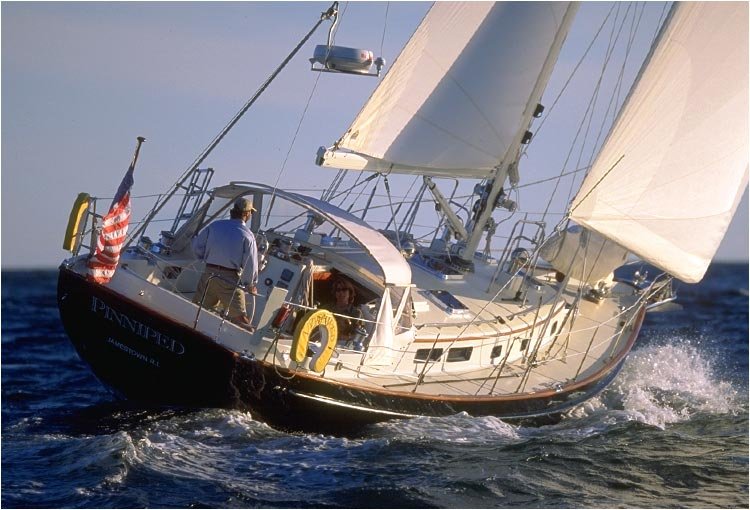

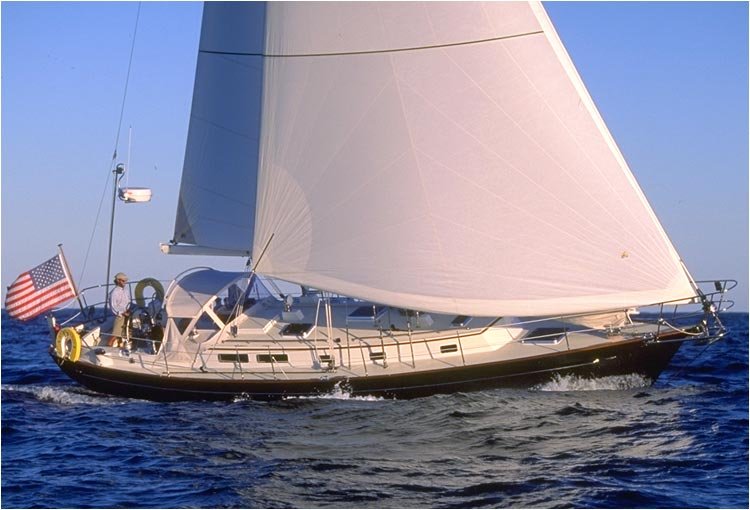

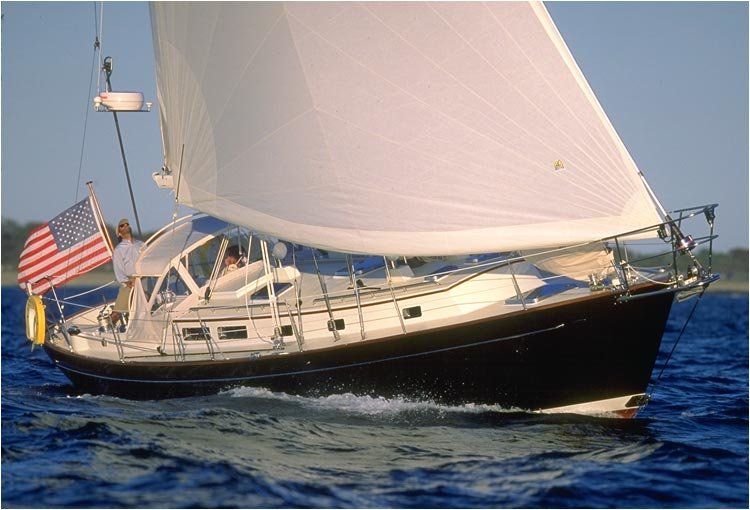

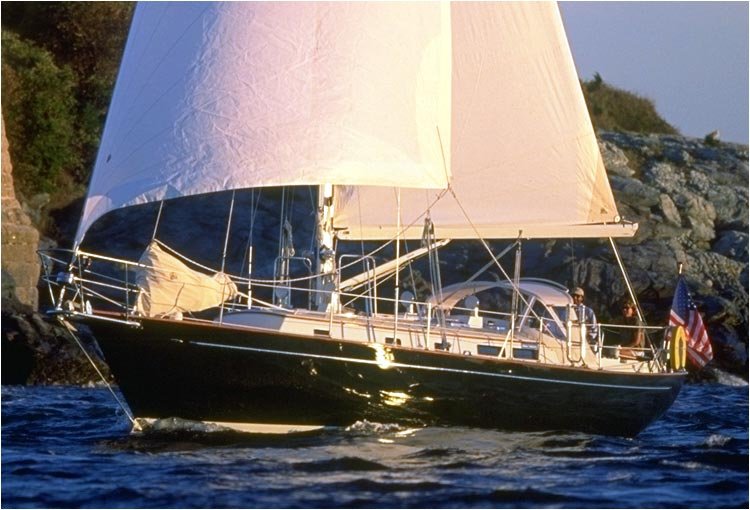

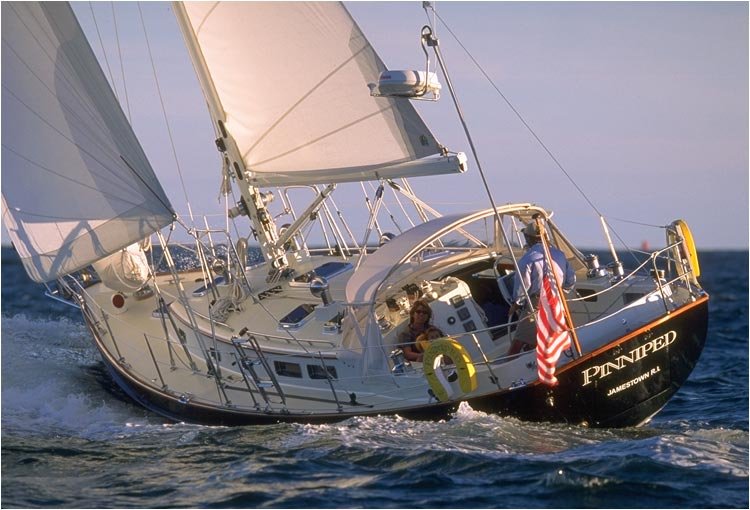

The Bruckmann 42 is fast and forgiving, yet not so large as to require an extensive crew to sail her. She provides outstanding sailing performance along with a safe comfortable disposition at sea, and is above all else, an able proven offshore passage maker. The Bruckmann 42 is a standout in any harbour and a testament to Bruckmann’s commitment to its clients.

STRUCTURE

• Fibreglass roving & unidirectional reinforcements over foam floors with limber holes
• Deck flange bolted & bonded to hull flange

HULL CONSTRUCTION
• Vinylester resin throughout
• Single piece Core-Cell cored fibreglass molding
• Extra reinforcing as required
• Core phased out in way of all thru-hulls, struts, shaft logs, rudder port & centre line
• Molded keel sump with increased laminate
• Awlgrip painted topsides & boot stripe
• Epoxy bottom barrier coat
• Owner specified bottom paint
• Awlgrip painted rum strake to match hull with stainless steel striker
• Externally fastened 8,000 lb. cast lead ballast

DECK CONSTRUCTION
• Single piece Core-Cell cored fibreglass molding with non-skid pattern on all working surfaces
• Core phased out in way of all deck fittings
• Awlgrip painted deck & non-skid
• Fibreglass storage boxes in cockpit coaming

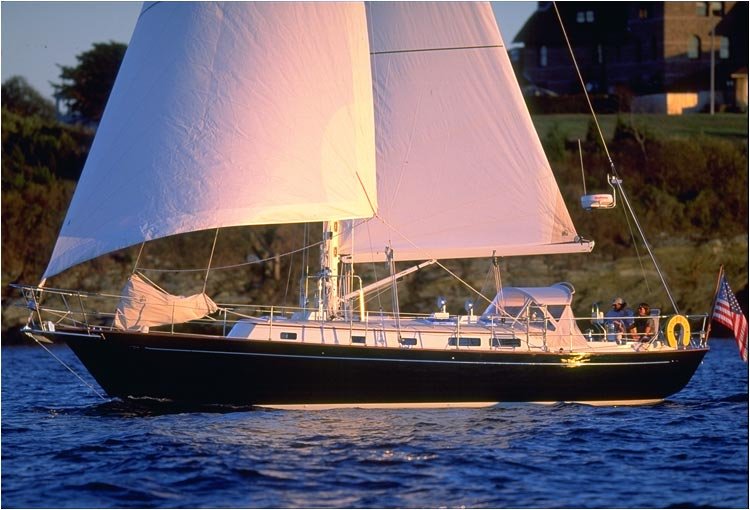

SPARS & RIGGING
• Awlgrip aluminium mast & boom
• Double spreader cutter rig with removable inner forestay & runners
• 4 internal halyards, internal outhaul & reef lines
• Solid boom vang
• Harken furling
• All standing rigging Navtec solid rod except
• Wire staysail stay
• All turnbuckles Navtec with toggles at deck
• Navtec rod bobstay
• All rope running rigging, colour coded
• 2 mainsheets
• 2 genoa sheets
• 1 main halyard with shackle
• 2 genoa halyards with swivel snap shackle
• 1 staysail halyard with swivel snap shackle
• 2 staysail sheets
• 2 running backstay sheets with blocks
• 6 mooring lines
• 6 fenders
• Dodger with stainless steel frame

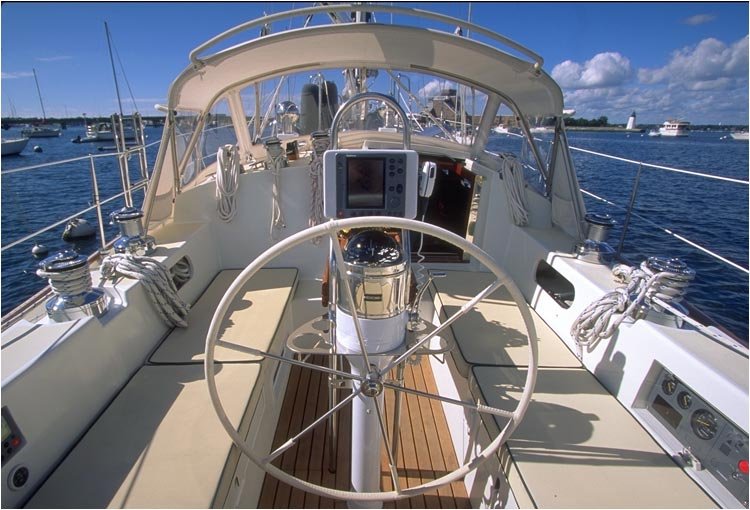

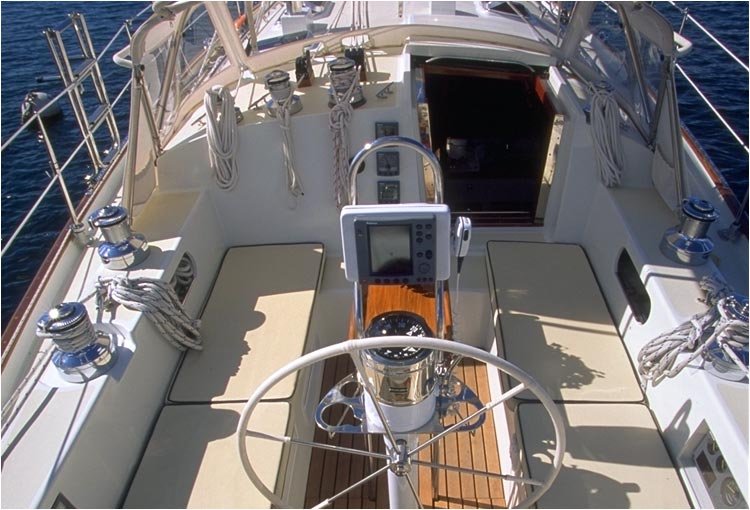

STEERING
• Fibreglass foam filled rudder with stainless steel shaft and stiffeners
• Edson # 400S pedestal steering
• 36″ diameter stainless steel wheel with leather wrapping
• Steering brake and stainless steel pedestal guard
• 6″ Ritchie compass with stainless steel cover
• Stainless steel emergency tiller

ENGINE & DRIVE SYSTEM
• Yanmar 4JH2E-50hp, 2:1 V drive
• 60 US Gallon aluminium fuel tank
• Racor fuel filter
• 17″ feathering propeller
• Engine room sound insulation
• Blower engine room ventilation
• Hinged engine access
• Stainless steel thru transom exhaust
• Coast guard approved exhaust hoses
• Waterlift muffler

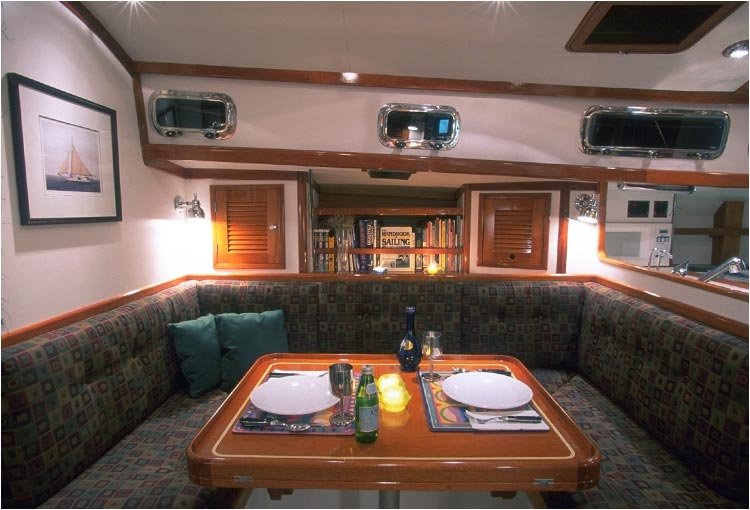

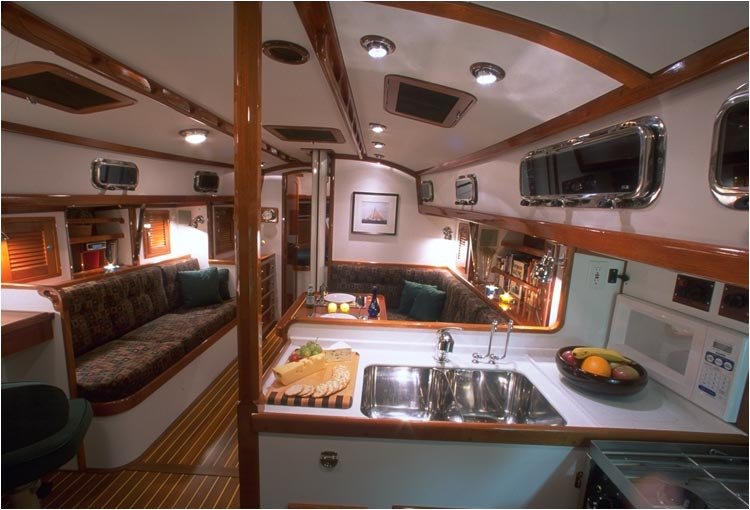

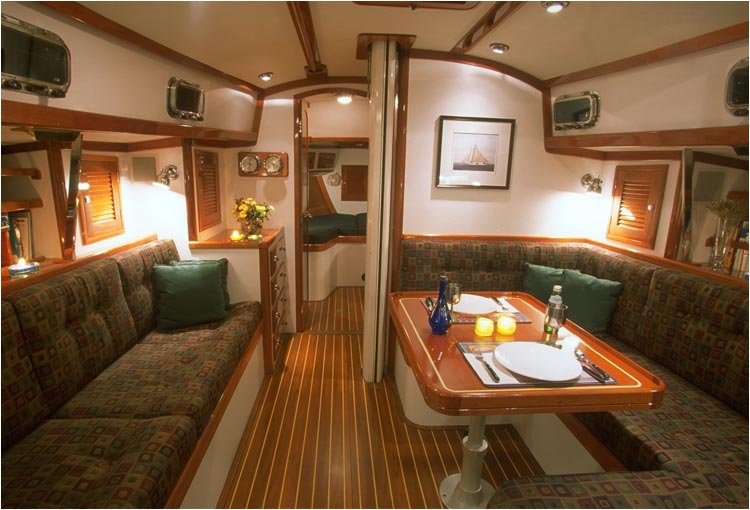

ACCOMMODATIONS
• Standard finish white bulkheads with satin varnish trim & doors
• All interior joiner work & trim satin varnished
• Varnished teak & holly sole
• Removable overhead panels finished in satin white
• Shaped varnished valence hand hold at house side
• 5″ foam upholstered cushions in main cabin & 6″ foam in staterooms
• All latches, hinges, catches & pulls brass or bright chrome or stainless steel
• Corian counter tops in galley and heads

REFRIGERATION
• Engine driven cold plate system with 2 plates
• Molded fibreglass box with 4″ foam insulation
• Separate freezer & refrigerator with top & front access

PLUMBING
• Pressure water with hot & cold faucets in heads & galley
• Water heater, 6 gallon, 110 V & engine heat exchanger
• Foot pumps for fresh & salt water in galley
• 2 stainless steel water tanks, 75 U.S. gallons per, with level gauges
• Shower with fibreglass pan with sump pump & extending shower head
• Deep double stainless steel sink in galley
• Ceramic sink in head
• Cockpit hot & cold shower
• Icebox drain pump
• Manual marine toilet
• 40 US gallon holding tank with deck pump out
• Marelon seacocks

BILGE PUMPS
• Rule 3500 electric bilge pump with float switch
• #10 Whale “Gusher” manual bilge pump mounted in cockpit

PROPANE
• 3 burner Force 10 stainless steel stove with oven
• 2 x 10Ib. propane tanks with regulator
• Solenoid propane shutoff valve with remote switch
• All hoses & connectors meet Coast Guard or ABYC requirements

ELECTRICAL
• Exterior Lights
• Navigation lights on bow pulpit, stern light on stern pulpit
• Steaming, foredeck, masthead & speader
• Lights on mast
• Light at compass
• Interior Lights & Fans
• Overhead dome lights in staterooms, main cabin, galley, head & engine space
• Directional reading lights in each stateroom & main cabin
• Directional light at chart table
• All light “cantaloupi” or “DanishCabin” or equivalent
12 Volt System
• Wiring sized & colour coded to ABYC specs
• 1 x DS115 & 2 x 8D gel cell house batteries
• 2 explosion proof master battery selection switches
• 12V D.C. custom distribution panel with 30 amp double pole shore power main breaker, A.C. line voltage meter, polarity indicator
• 6 A.C. branch circuits
• 50 ft. shore power cord with 30 amp adaptor
