42 Daysailer

An elegant and extremely versatile cruise simply unmatched in performance,
comfort, and eaworthiness.

42 Daysailer – Eight people for the day. Two for the night. Built for both.

The 42 Daysailer was designed by Doug Zurn and built here in Mississauga. Eight people for an afternoon on the bay. Two people for the night. That’s the whole brief, and the boat delivers it.

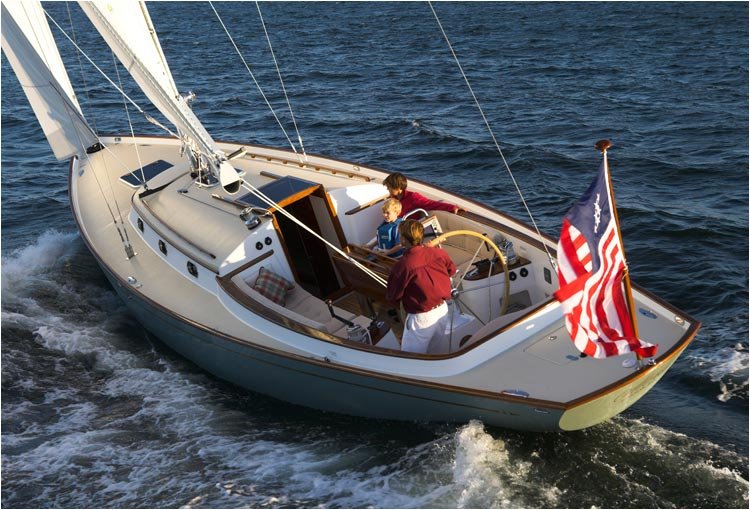

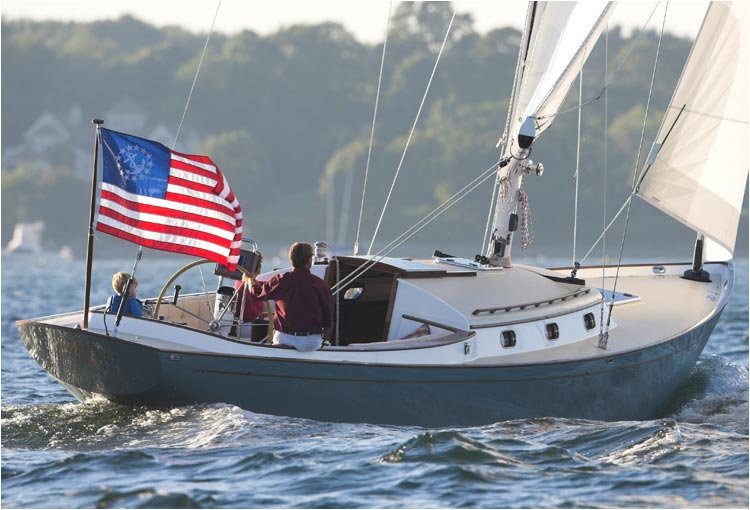

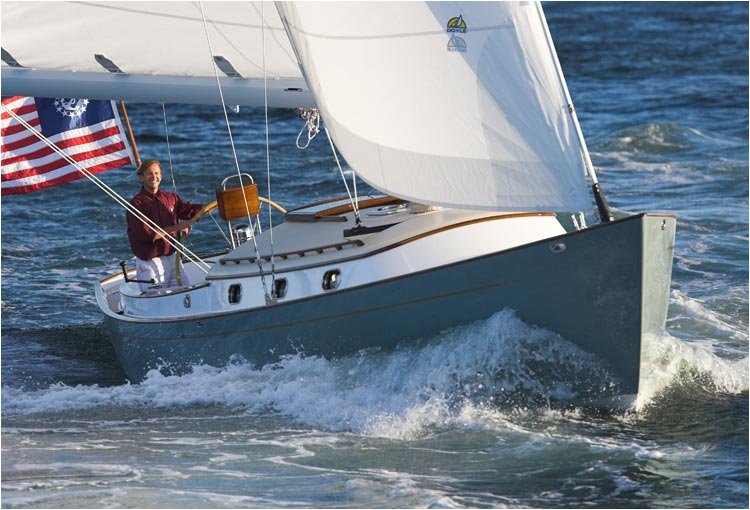

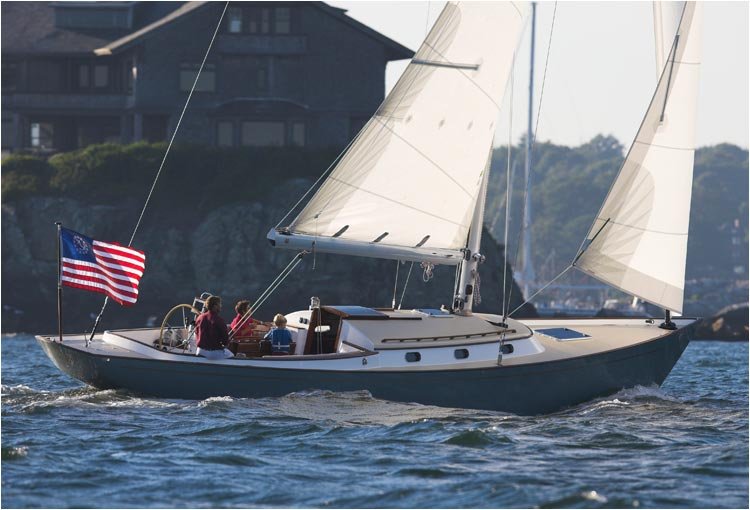

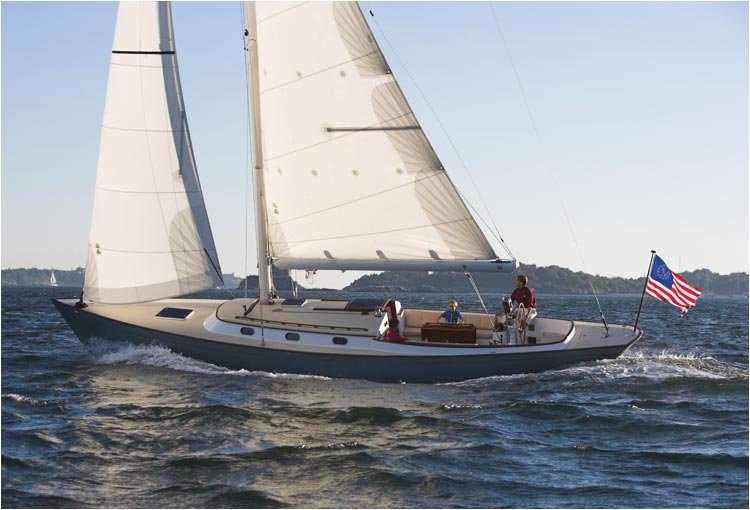

She’s long and lean — 42 feet, 17,500 lbs, 898 square feet of sail. Low profile, big cockpit, all the control lines led aft so one person can handle her properly. The hydraulic vang and backstay live at the helm. The shoal draft keel gets her moving at speeds that would surprise you on a boat this size. Carbon fibre spars are available if you want to push it further.

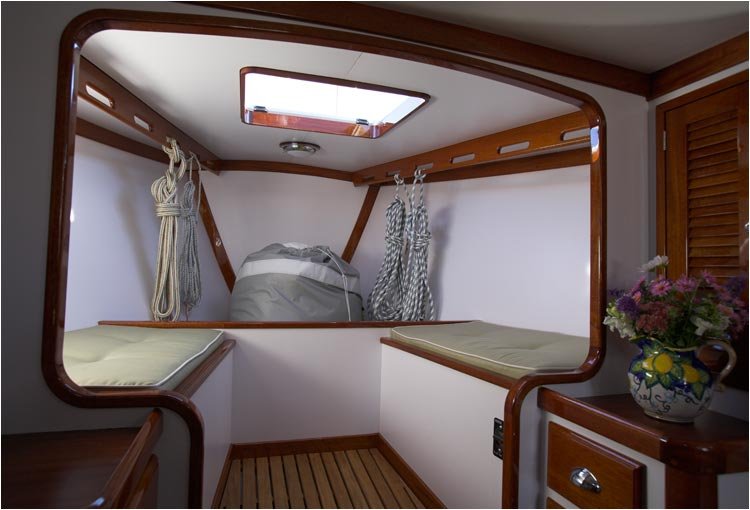

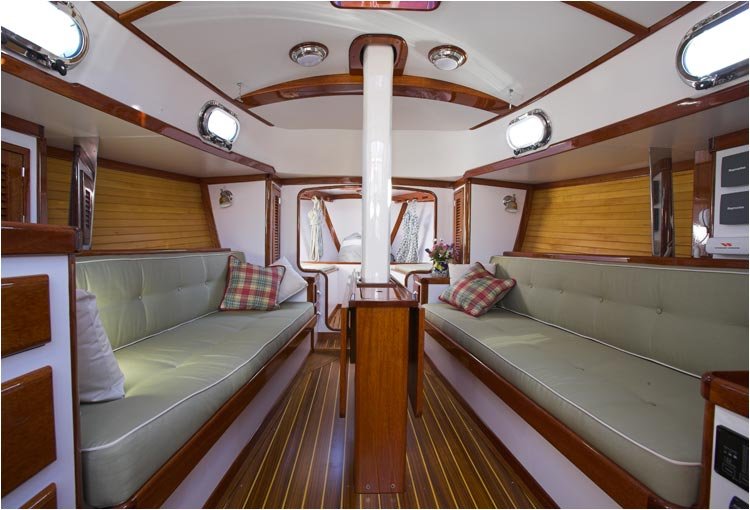

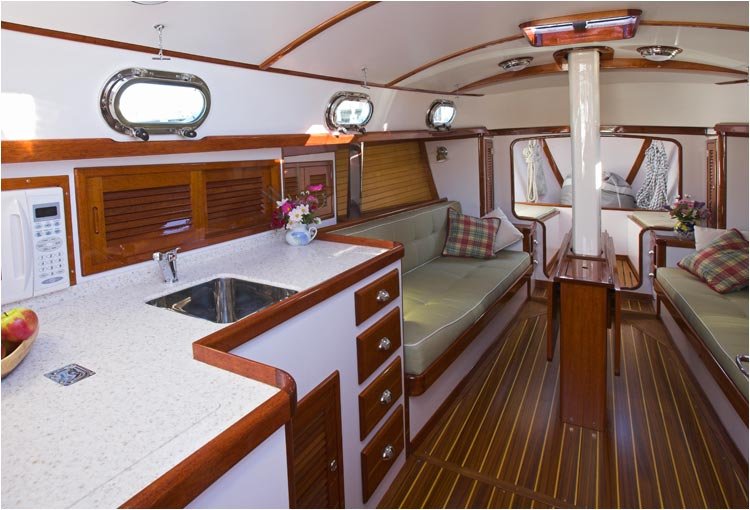

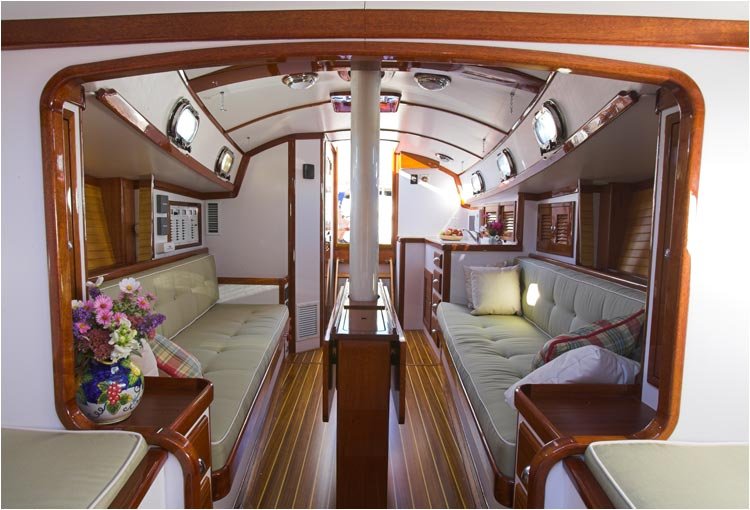

Below deck, the boat doesn’t try to be a cruiser. The saloon seats eight for drinks or dinner. Forward there’s a proper berth for two. It’s not a cruiser — it’s a daysailer that happens to be comfortable when you decide to stay the night.

Gallery:

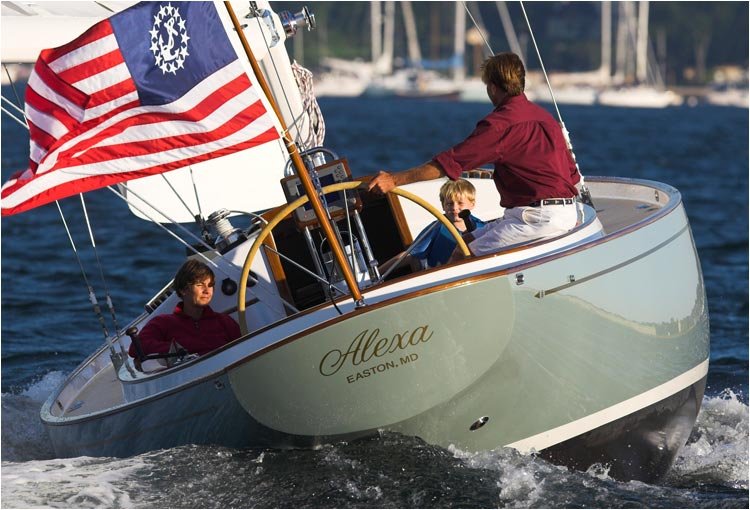

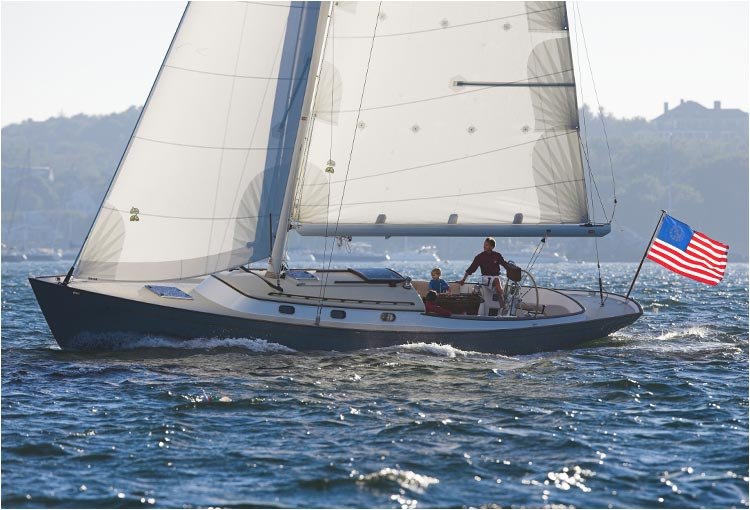

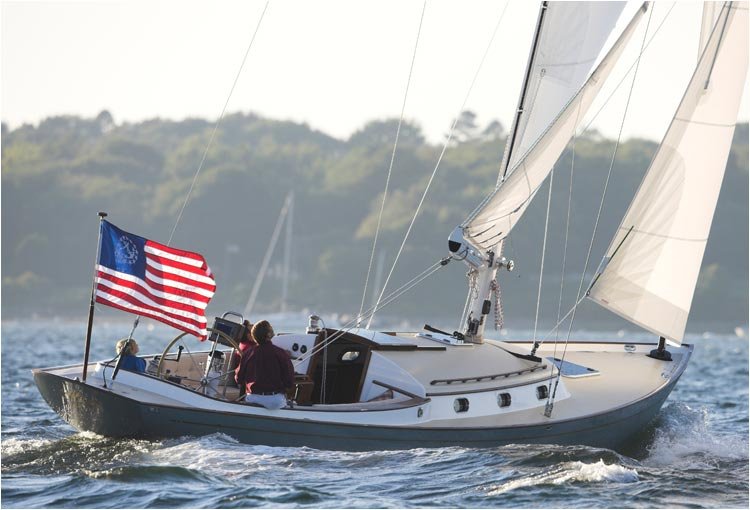

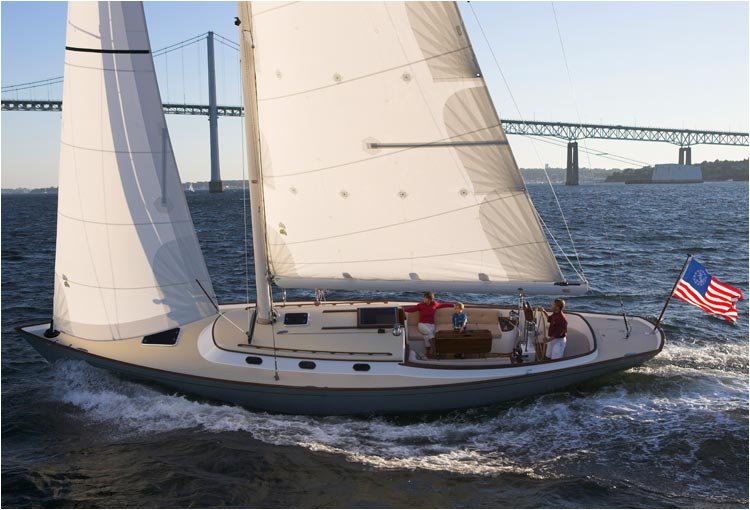

The 42 Daysailer in detail

Specifications:

LOA

42’4″

LWL

32’9″

Beam

11’0″

Draft

4’9″

Displacement

17,500 lbs

Ballast

8,134 lbs

Sail Area

898 sq. ft.

Engine

Yanmar 30 hp Saildrive

Fuel Capacity

26 US gallons

Water Capacity

60 US gallons

• Vinylester resin throughout
• Single-piece Core-Cell® cored fiberglass molding
• Core phased out in way of all thru-hulls, drive leg, rudder port & centreline
• Molded keel sump with increased laminate
• Awlgrip® painted topsides & boot stripe
• Epoxy bottom barrier coat
• Owner-specified bottom paint
• Externally fastened 8134 lb. cast lead ballast

• Single piece Core-Cell® cored fiberglass molding with non-skid pattern on all working surfaces
• Core phased out in way of all deck fittings
• Awlgrip® painted deck & non-skid
• Lazarette storage in aft deck
• (2) large storage lockers in cockpit
• Varnished teak cabin nosing
• Varnished teak caprail

• All winches chromed & self-tailing
• (2) primary electric cockpit winches Lewmar #48
• (1) cabintop control line winch, Lewmar #30
• (2) winch handles, 10” with lock-in
• 12 volt dual direction Lewmar windlass
• 3” foam upholstered cockpit cushions

• All deck hardware Harken or Lewmar
• Deck blocks at spar for halyard reefs & control lines
• (2) two-sheave organizers
• (2) inboard genoa tracks
• (2) opening low-lead sheet cars
• (2) large snatch blocks
• (2) double sheave foot blocks

• (6) 10” stainless steel flush mount mooring cleats
• (6) custom chrome bronze chocks set into caprail
• Cabintop cleats as required
• Line stoppers as required

• North – fully battened main
• 100% Genoa
• multi-purpose spinnaker

• Awlgrip® aluminium mast & boom
• Fractional rig with swept double spreaders
• (3) internal halyards, internal outhaul & reefing lines
• Boom with welded ends, four internal sheaves, & adjustable outhaul car
• Hydraulic boom vang
• Hydraulic backstay
• Headsail furler with drum and control line below decks
• All standing rigging Navtec® solid rod discontinuous rigging with turnbuckles & toggles at deck
• Custom stainless steel chainplates
• All rope running rigging color coded
• (1) mainsheet
• (2) genoa sheets
• (1) main halyard with shackle
• (1) genoa halyard with swivel snap shackle

• Balanced fiberglass foam-filled rudder with stainless steel shaft & stiffeners
• 44” diameter stainless steel wheel with teak wrapping
• 6” Ritchie® compass with stainless steel cap
• Stainless steel emergency tiller

• Yanmar 30hp saildrive with folding two-blade propeller
• 26 US gallon fuel tank with vent
• Racor® fuel filter
• Engine room sound insulation
• Blower engine room ventilation
• Hinged engine access
• Stainless steel thru-transom exhaust
• Coast Guard approved exhaust hoses
• Water lift muffler

• 2 multi displays for wind, speed, depth
• VHF radio in cockpit
• Raymarine® GPS/Chart plotter

• All interior joiner work & trim gloss varnished
• Varnished teak & holly sole
• Table with folding leaves in salon
• Settees convertible to berths
• Hanging locker forward
• 5” foam upholstered cushions in main cabin
• All latches, hinges, catches & pulls bright
chrome or stainless steel
• Corian® counter tops in galley & head

• 12 volt DC refrigeration
• Molded fiberglass box with 4” foam insulation

• Pressure water with hot & cold faucets in head & galley
• 6 gallon water heater with 110V & engine heat exchange
• Foot pump for salt water/icebox in galley
• 2 water tanks, 60 U.S. gallons total, with level gauges
• Cockpit shower
• Marine manual toilet
• 18 gallon holding tank with overboard discharge & 12 volt macerator
• All seacocks Marelon®
• Rule® 2000 electric bilge pump with float switch
• #10 Whale® “Gusher” manual bilge pump mounted in cockpit

• All wiring sized & colour coded to ABYC specs.
• Navigation lights on masthead, stern light on aft deck
• Steaming, foredeck, masthead & spreader lights on mast
• Light on compass
• (1) DS115 & (2) 4D gel cell batteries
• (2) explosion-proof master battery selection switches
• 12V DC custom distribution panel with 30 amp service
• Double-pole shore power main breaker
• Voltage meter, polarity indicator
• 110 volt 30 amp shore power with 50’ cord
• 110 volt outlets in galley, head & dinette
• 1500 watt inverter/charger
• Microwave

Enquire about the 42 Daysailer

We build to order. Speak with an advisor about specification, delivery, and sea-trial.
